Win2075-K
20A MPPT SOLAR CHARGE CONTROLLER
Designed for RV
MPPT,20A,12V/24V auto
260W/520W max input power, 55V max solar voltage
LED display, Negative grounding, Bluetooth, IP54
-
Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9%
- Full digital technology, high charge conversion efficiency up to 98%
- LED indicator for easy to read charging state and battery information
- 12/24V automatic recognition
- Liquid, Gel, AGM and Lithium battery for selection
- The separate ports for remote temperature sensor, make battery temperature compensation more accurate
- Four stages charge way: MPPT, boost, equalization, float
- Automatic over-temperature power reduction function
- Dual automatic restriction function when exceeding rated charging power and charging current
- Android APP version for Bluetooth communication
- Common negative design
- Key digital tube function, adjust parameters more convenient
- Perfect EMC & thermal design
- Full automatic electronic protect function

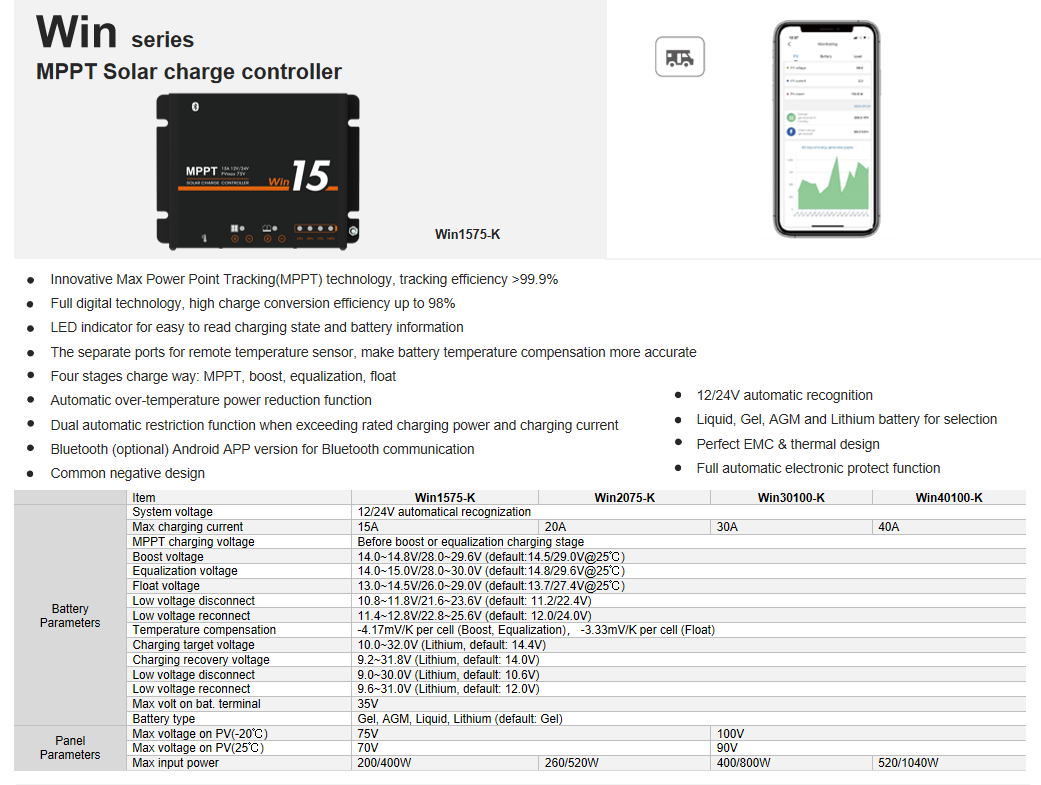

| Item | Win1575-K | Win2075-K |
| Battery type | Gel, AGM, Liquid, Lithium (default: Gel) | |
| System voltage | 12/24V automatical recognization | |
| Max charging current | 15A | 20A |
| MPPT charging voltage | before boost or equalization charging stage | |
| Boost voltage | 14.0~14.8V/28.0~29.6V (default:14.5/29.0V@25℃) | |
| Equalization voltage | 14.0~15.0V/28.0~30.0V (default:14.8/29.6V@25℃) | |
| Float voltage | 13.0~14.5V/26.0~29.0V (default:13.7/27.4V@25℃) | |
| Low voltage disconnect | 10.8~11.8V/21.6~23.6V (default: 11.2/22.4V) | |
| Low voltage reconnect | 11.4~12.8V/22.8~25.6V (default: 12.0/24.0V) | |
| Temperature compensation | -4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float) | |
| Charging target voltage | 10.0~32.0V (Lithium, default: 14.4/28.8V) | |
| Charging recovery voltage | 9.2~31.8V (Lithium, default: 14.0/28.0V) | |
| Low voltage disconnect | 9.0~30.0V (Lithium, default: 11.0/22.0V) | |
| Low voltage reconnect | 9.6~31.0V (Lithium, default: 12.0/24.0V) | |
| Max volt on bat. terminal | 35V | |
| Max voltage on PV(-20℃) | 75V*1 | |
| Max voltage on PV(25℃) | 70V | |
| Max input power | 200/400W | 260W/520W |
| MPPT tracking range | （Battery Voltage+1.0V）~Voc*0.9 *2 | |
| Max conversion efficiency | 97.0% | |
| Dimensions | 108.6*143*28.1mm | 108.6*164.2*31.5mm |
| Weight | 557g | 706g |
| Communication | BLE(Selectable) | |
| Grounding | Negative grounding | |
| Power terminals | 10AWG (5mm2) | |
| Ambient temperature | -20~+55℃ | |
| Storage temperature | -25~+80℃ | |
| Ambient humidity | 0~100%RH | |
| Protection degree | IP54 | |
| Max Altitude | 4000m | |
