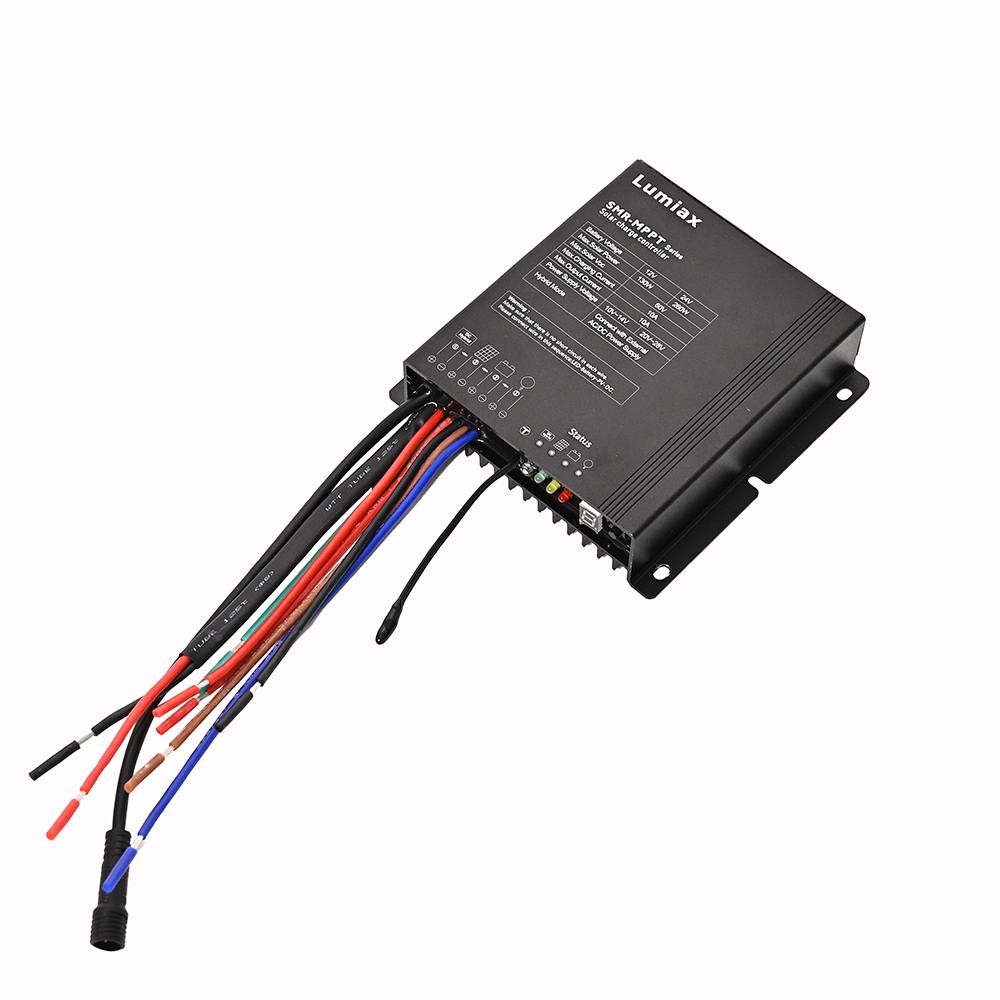

SMR-MPPT1060H
10A 12V/24V MPPT Solar charge controller
Smart-MPPT series intelligent MPPT solar controller is programmable , waterproof and well-suited for a wide range of solar systems. The charging efficiency of this controller is higher than a traditional PWM controller, helping to get the most out of the solar panel.
It comes with a number of outstanding features, such as:
Smart-MPPT series intelligent MPPT solar controller is programmable , waterproof and well-suited for a wide range of solar systems. The charging efficiency of this controller is higher than a traditional PWM controller, helping to get the most out of the solar panel.
It comes with a number of outstanding features, such as:
It comes with a number of outstanding features, such as:
- Innovative Maximum Power Point Tracking(MPPT) technology, tracking efficiency >99.9%
- High charge conversion efficiency up to 97.5%
- Suitable for Gel, Liquid, AGM and Lithium battery
- Four stage charging: MPPT, boost, equalization, float
- Below 0℃ Charging Protection can be programmed (Lithium)
- When BMS power off because of LVD, it can activate the system automatically by panel
- Day/Night threshold can adjust automatically
- Waterproof IP67, Strong and durable aluminum case
- Full automatic electronic protect function
| Item | SMR-MPPT1060H | SMR-MPPT1060H-RS485 | |
| Max Charging Current | 10A | ||
| System Voltage | 12V/24V automatical recognization | ||
| Battery Type | Lithium, Liquid, Gel, AGM (Programmable, default: Gel) | ||
| Liquid, Gel and AGM | MPPT Charging Voltage | <14.5/29.0V@25℃ | |
| Boost Voltage |
14.0~14.8V/28.0~29.6V(Default: 14.5/29.0V@25℃, Programmable) |
||
| Equalization Voltage | 14.0~15.0V/28.0~30.0V(Default: 14.8/29.6V@25℃, Liquid/AGM, Programmable) | ||
| Float Voltage | 13.0~14.5V/26.0~29.0V(Default: 13.7/27.4V@25℃, Programmable) | ||
| Low Volt. Disconnect | 10.8~11.8V/21.6~23.6V(Default: 11.2/22.4V, Programmable） | ||
| Reconnect Voltage | 11.4~12.8V/22.8~25.6V(Default: 12.2/24.4V, Programmable） | ||
| Overcharge Protect | 15.5/31.0V | ||
| Temp. Compensation | -4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float) | ||
| Lithium | Charging voltage target | 10.0~32.0V (Programmable) | |
| Charging voltage recovery | 9.2~31.8V (Lithium, Programmable） | ||
| Low voltage disconnect | 9.0~30.0V (Lithium, Programmable） | ||
| Low voltage reconnect | 9.6~31.0V (Programmable) | ||
| 0℃ Charge Protection | Yes, No, Slow(Lithium, default: Yes) | ||
| Max volt on Bat. Terminal | 35V | ||
| Max input power | 130/260W | ||
| Max volt on PV terminal *1 | 60V | ||
| Dusk/Dawn detect volt. | 3.0~20.0V(Programmable） | ||
| Day/Night delay time | 0~30Min (Programmable） | ||
| MPPT tracking range *2 | (Battery Voltage + 1.0V)~Voc*0.9 | ||
| Max tracking efficiency | >99.9% | ||
| Mains mode | External DC power supply | ||
| Power supply voltage | 10V~14V(12V system); 20V~28V(24V system) | ||
| Output Current | 10A | ||
| Communication mode | Infrared | RS485 | |
| Power supply priority | Mains priority/battery priority (Default: battery priority, programmable) | ||
| Max charge conversion | 97.2% | ||
| Self consumption | 7~18mA | ||
| Dimensions | 113*115.3*29.8mm | ||
| Net weight | 516g | ||
| Ambient temperature | -35~+60℃ | ||
| Ambient humidity | 0~100%RH | ||
| Protection degree | IP67 | ||
