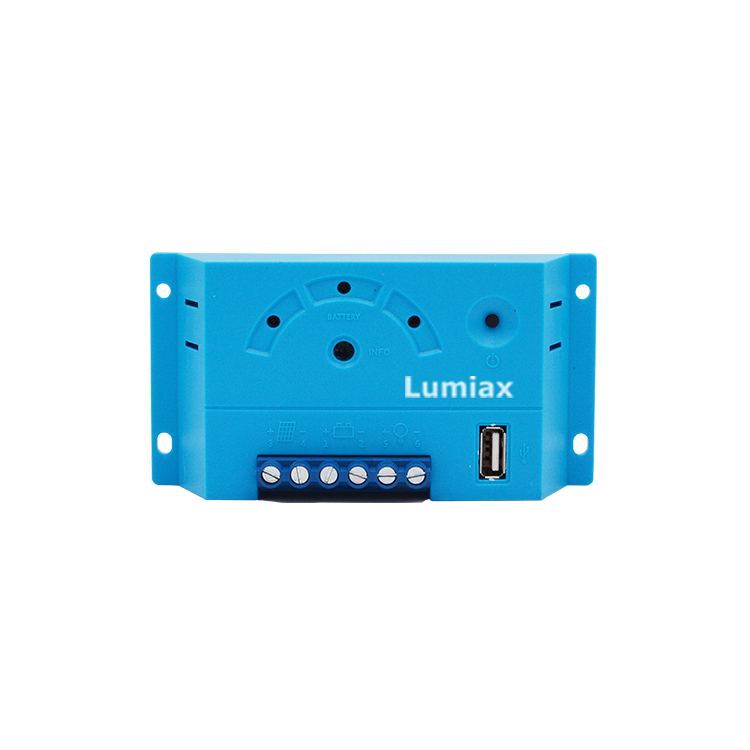

Shine1012EU

10A PWM SOLAR CHARGE CONTROLLER

PWM,10A,12V
5V1A USB*1
25V max solar voltage,
LED display
solar charge controller USB

  • Low cost and high reliability design, suitable for 12V system voltage
  • Load output can be controlled by switch
  • Work mode optional: system, D2D
  • Clear readable display of charge/discharge and error description
  • Temperature compensation
  • Gel, Liquid battery for selection
  • Four stage charge way: fast, boost, equalization, float
  • Full automatic electronic protect function
  • USB interface


Model Shine1012-EU                                                        Shine1012-EULI
System voltage 12V
Max solar or load current 10A
Fast voltage 14.0V (25℃)                                                       /
Boost voltage 14.5V (25℃)                                                        /
Equalization voltage 14.8V (25℃)(Liquid)                                      /
Float voltage 13.7V (25℃)                                                        /
Charging voltage target    /                 12.5/14.4V

charging voltage recovery

  /
12.2/14.0V
Load disconnect voltage 11.0V                                                             9.9/11.2V
Load reconnect voltage 12.5V                                                                  9.0/12.0V
Over voltage protection 15.5V                                                             Charging voltage target+0.2V
Work mode System, D2D(Dusk to Dawn)
Battery type Liquid(default)/Gel 3s Lithium/4s LiFePO4(default)
Temperature compensation -4.17mV/K per cell (boost, equalizatio-n), /
 -3.33mV/K per cell (float)
Max voltage at solar terminals 25V
Max voltage at battery terminals 20V
Dimensions/Weight 126*66*33mm / 110g
Max. wire size 4mm²
Self consumption 6mA
Ambient temperature -35℃ ~ +60 ℃
Protection level IP22
USB interface 5V, 2A
